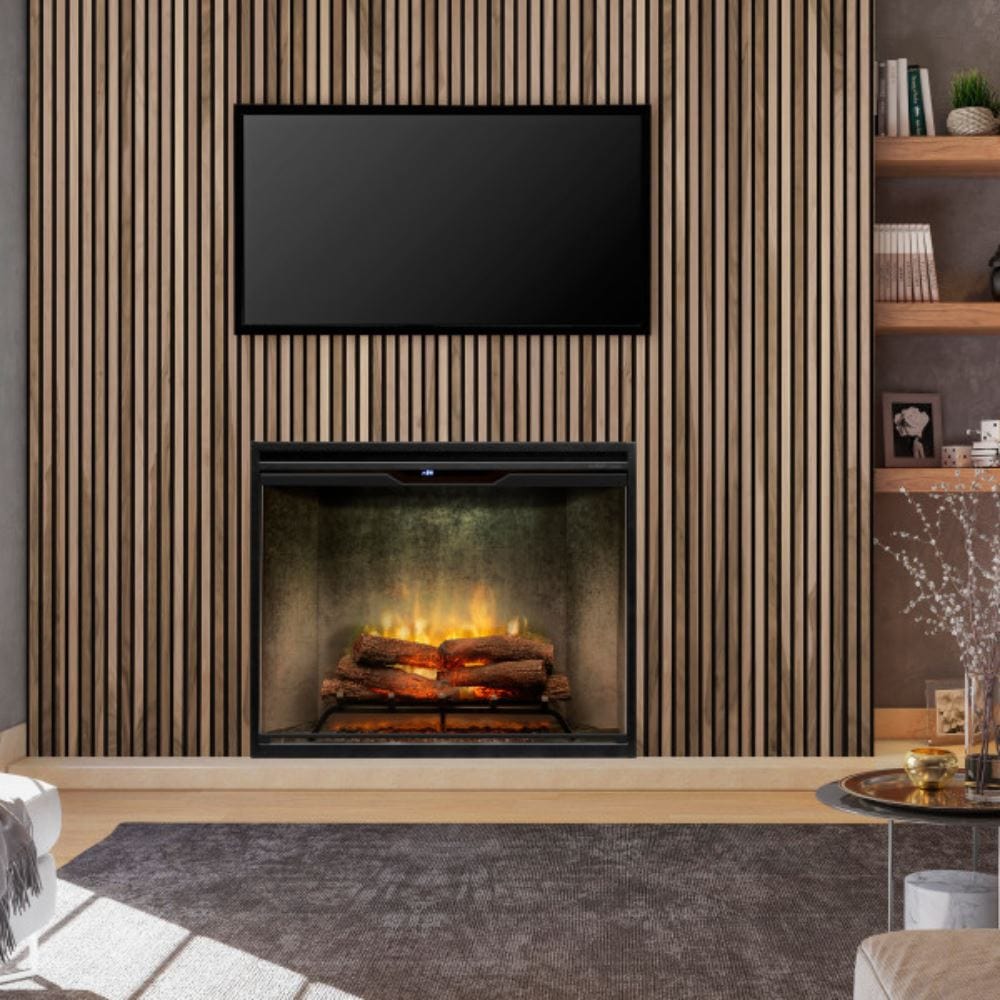

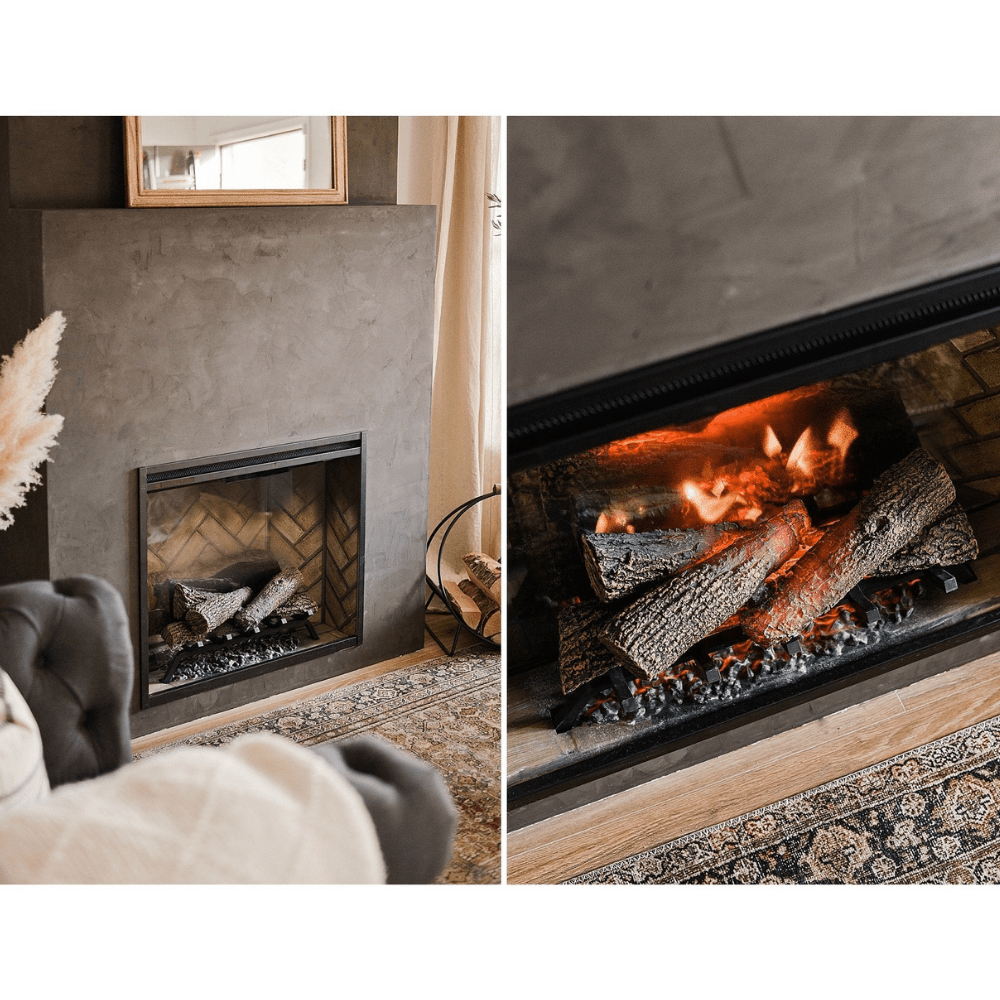

Capture the timeless character of a traditional fireplace with the realism and convenience of modern electric technology. The Dimplex Revillusion™ Firebox is designed to refresh existing fireplace openings with a classic look, without the hassle of venting, gas lines, or ongoing maintenance. Its carefully balanced design blends old-world charm with contemporary performance, making it ideal for updated interiors that still value tradition.

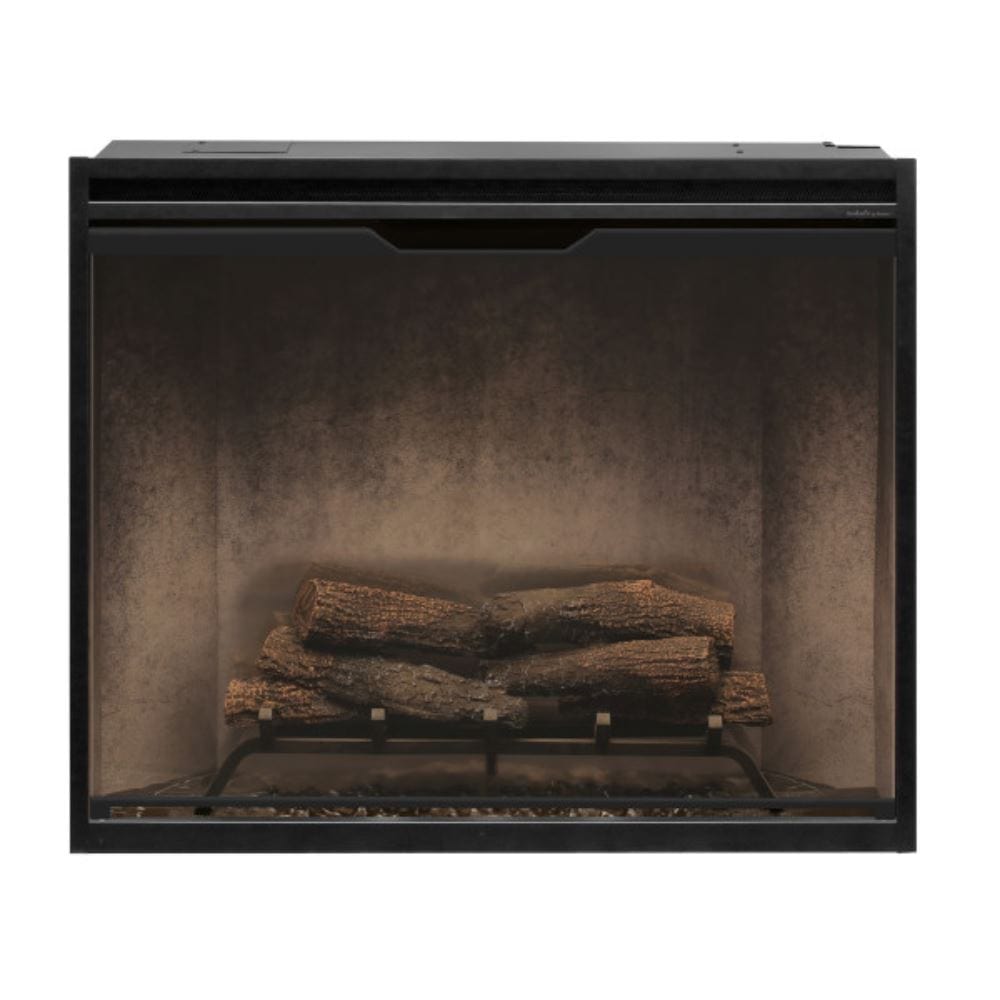

Choose from four interior finishes—Herringbone Brick, Weathered Concrete, Black, or Neutral Brick—to match your space. Revillusion™ flame technology creates larger, brighter flames that appear to rise from within the logs, while glowing Realogs and natural soot detailing add depth and authenticity. A partially frosted acrylic panel eliminates reflections, allowing a clear view through the firebox for a more realistic, wood-burning appearance.

Installation is straightforward: simply frame, wire, and finish. The firebox can be plugged in or hardwired, offers multiple voltage options, and operates with or without heat for year-round enjoyment. Adjustable lighting, flame colors, and heat settings give you complete control over comfort and ambiance.

Features

• Built-in electric firebox with a traditional fireplace appearance

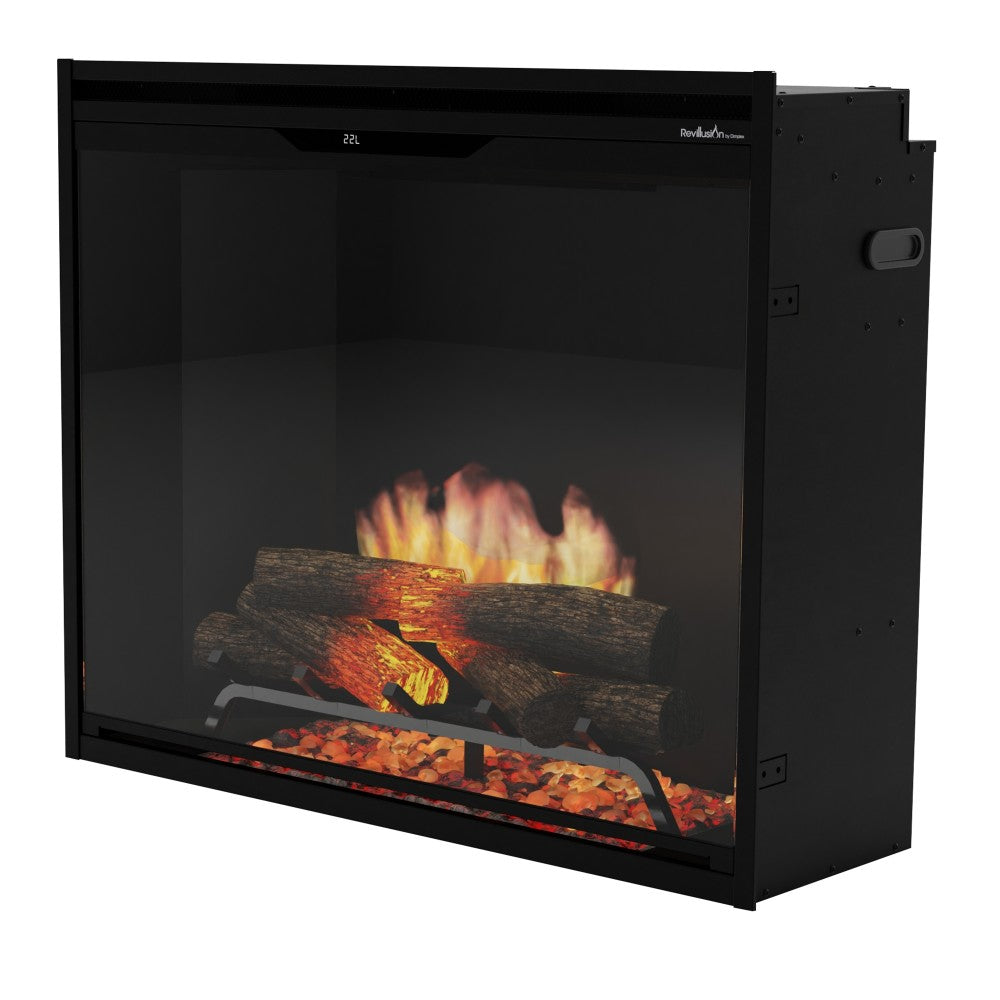

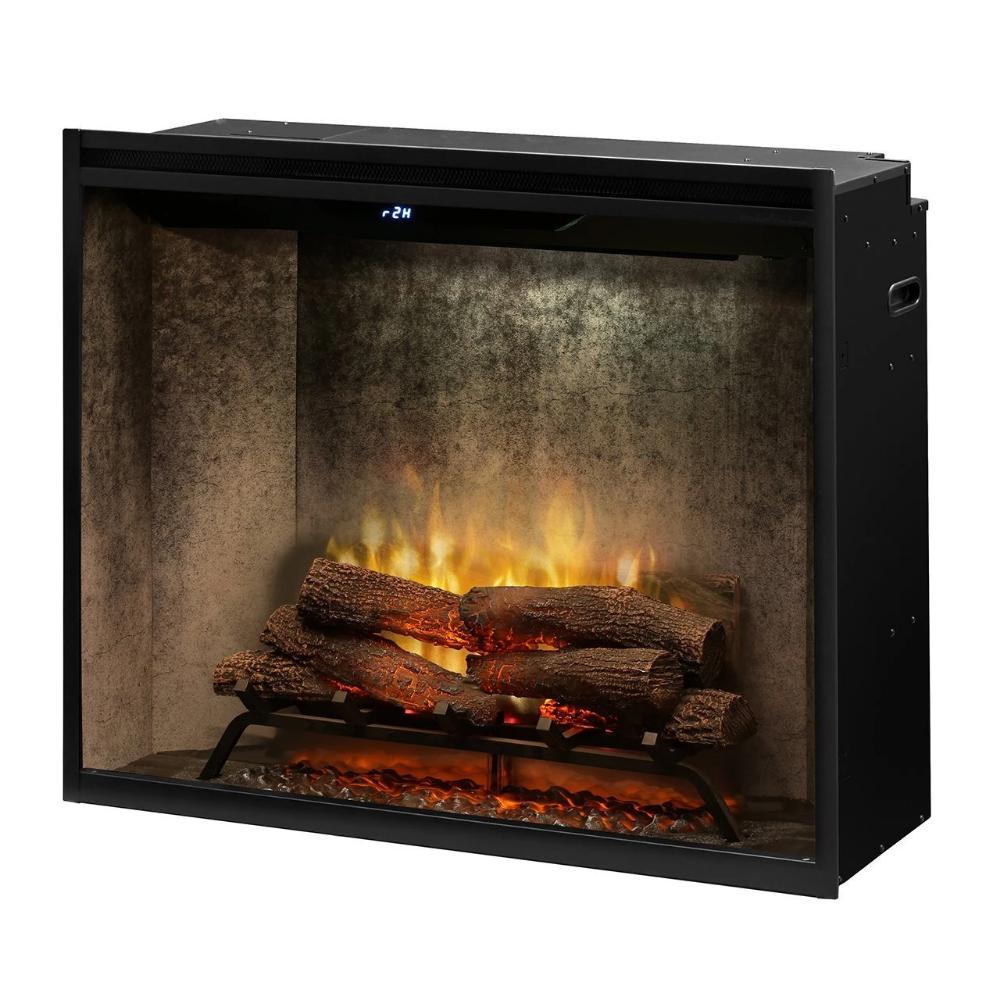

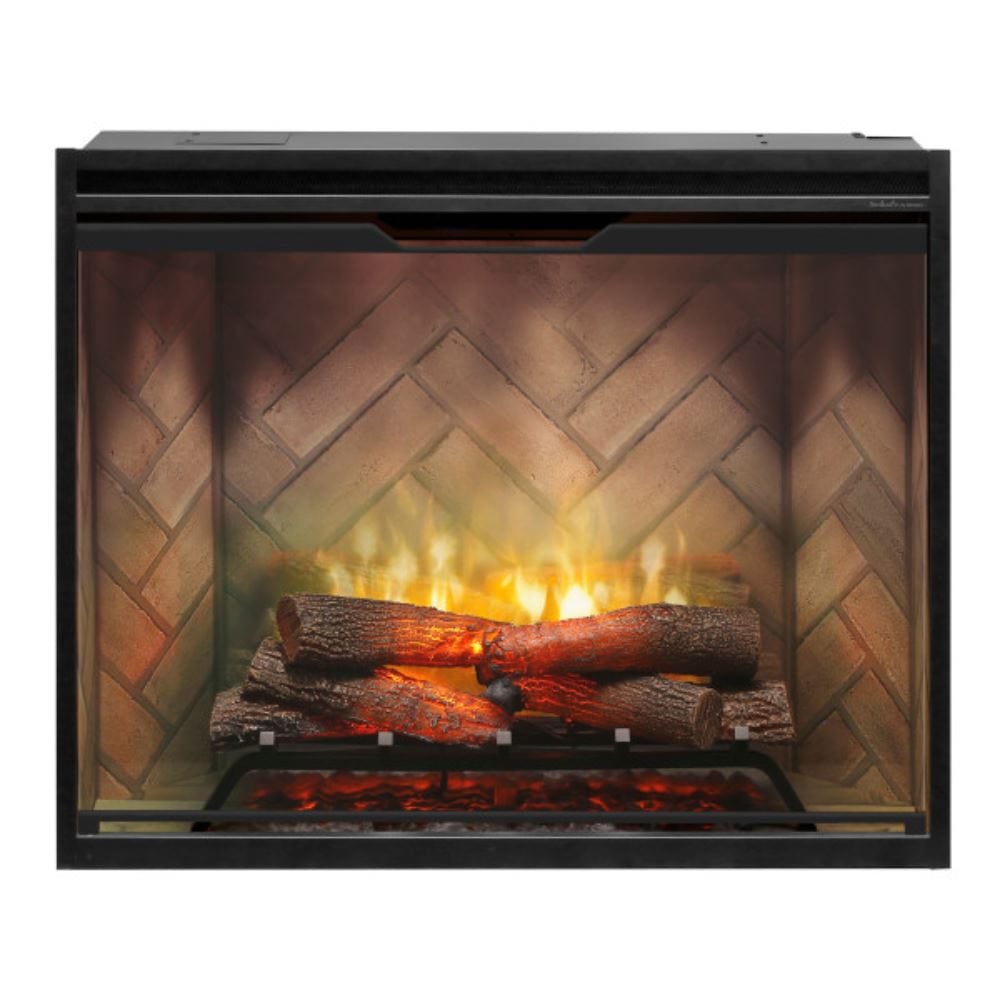

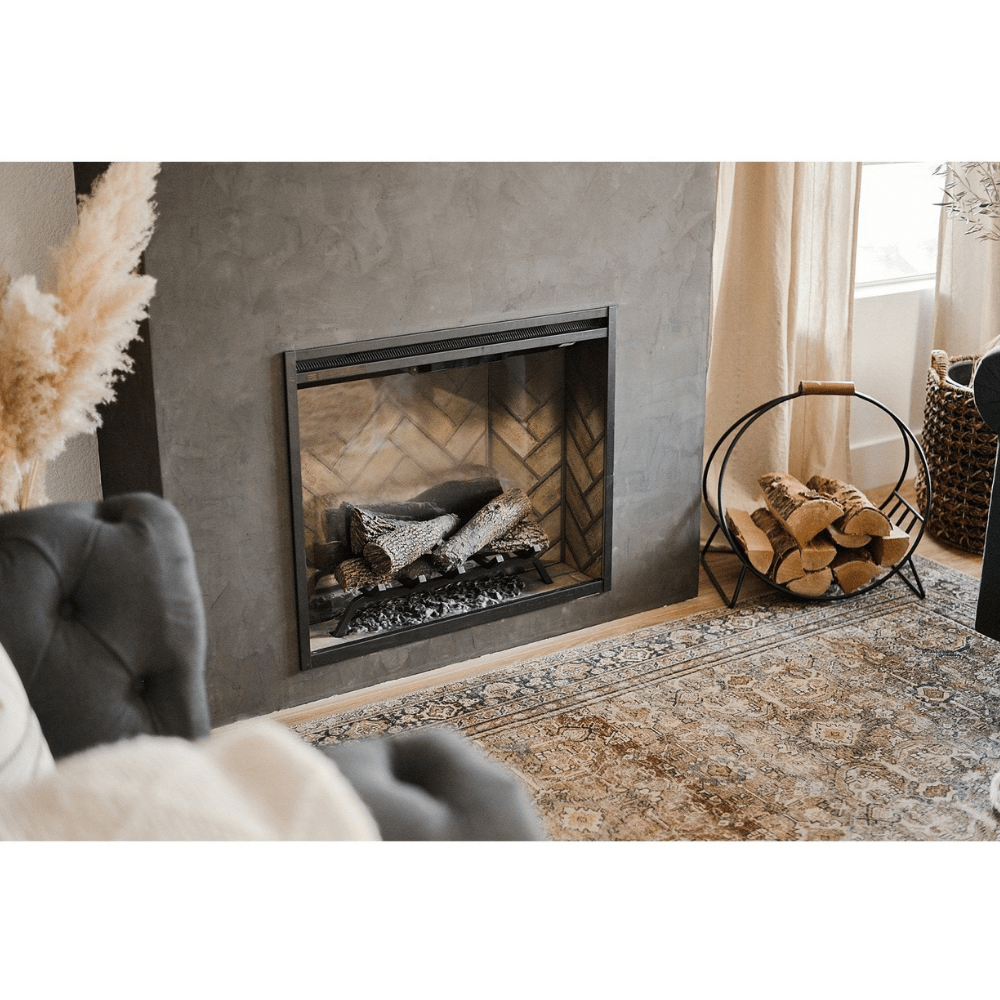

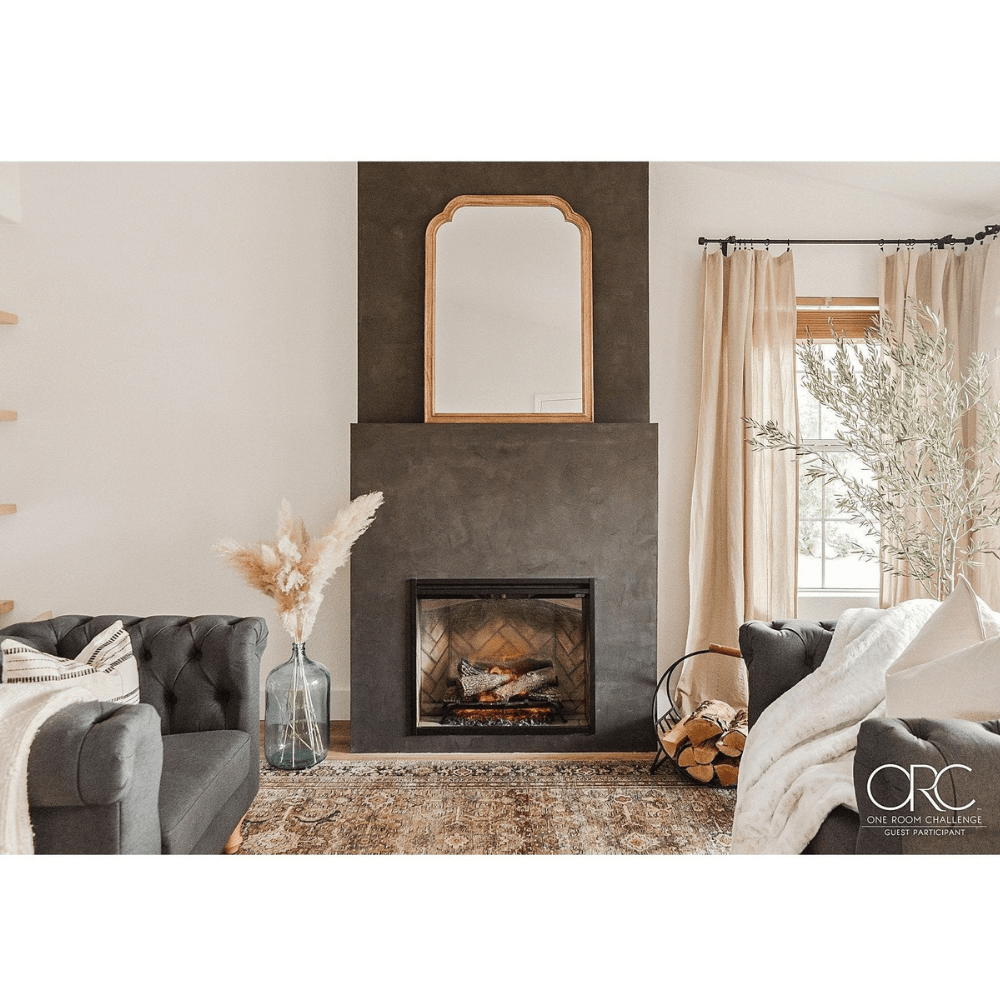

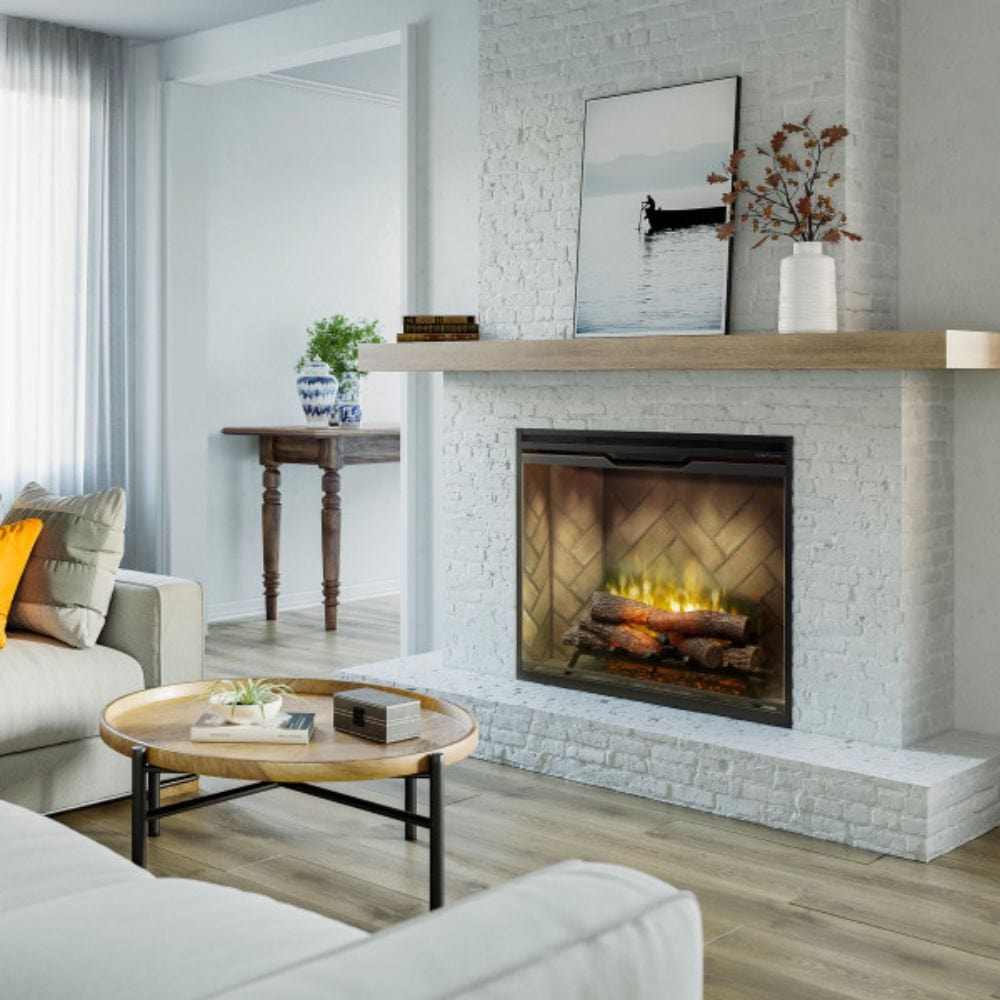

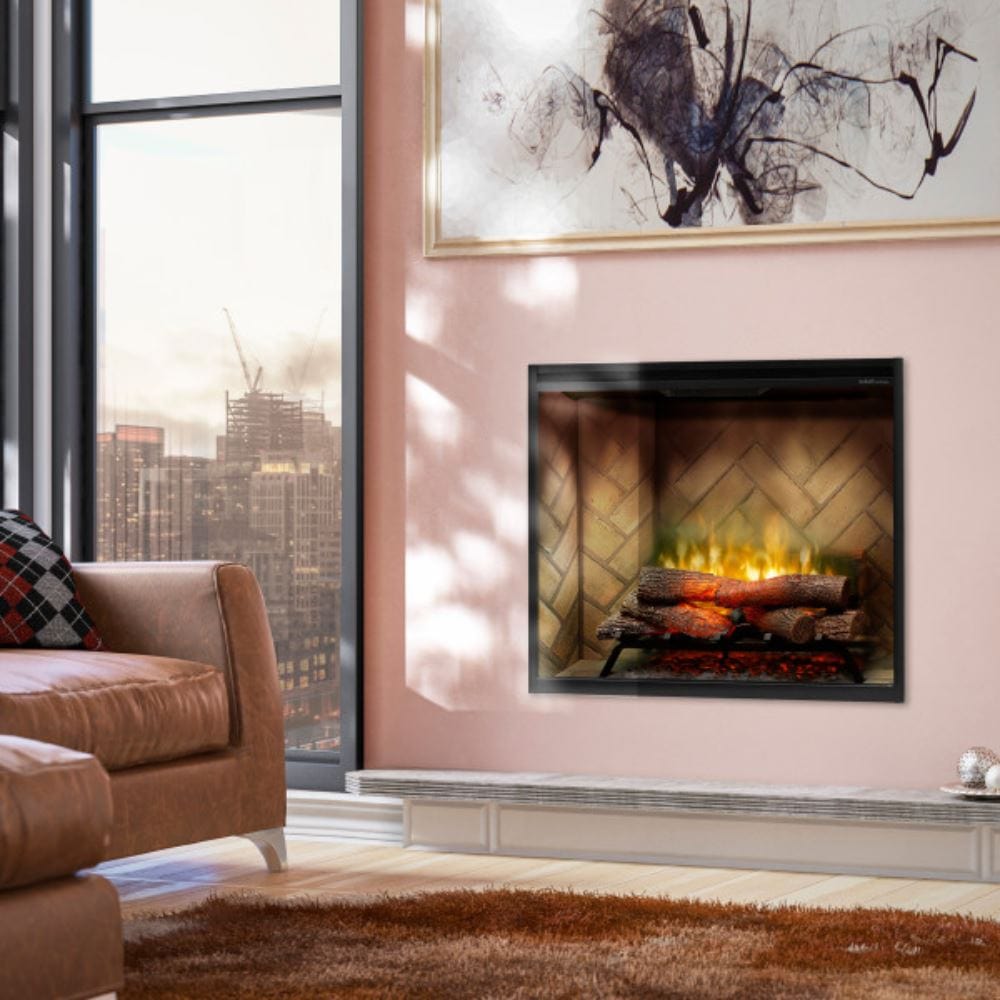

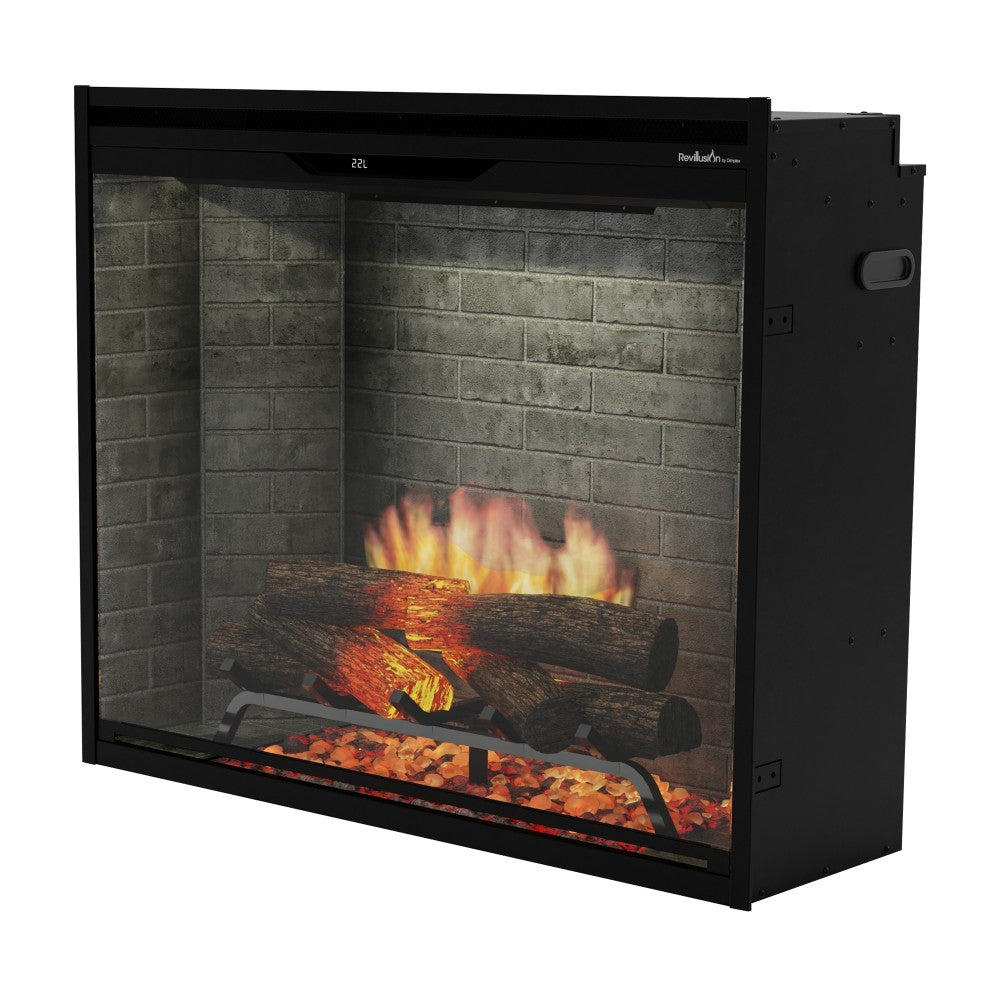

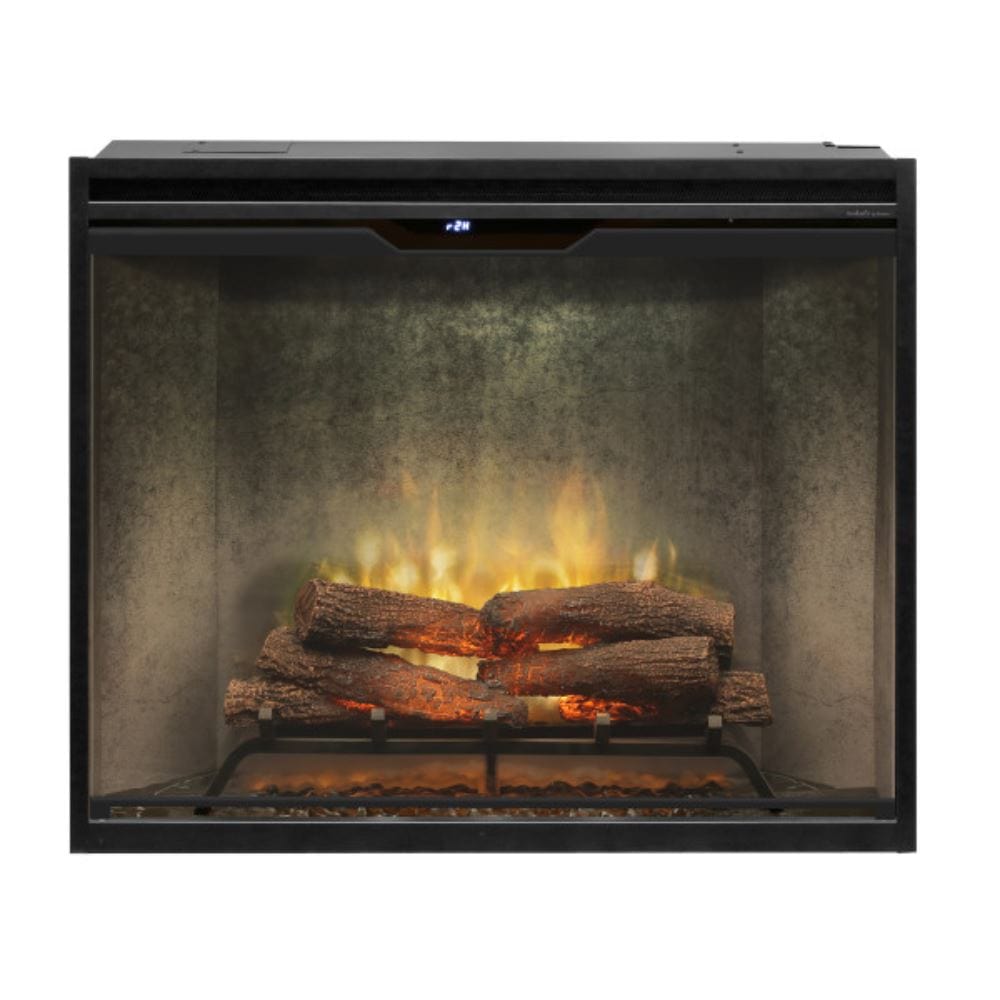

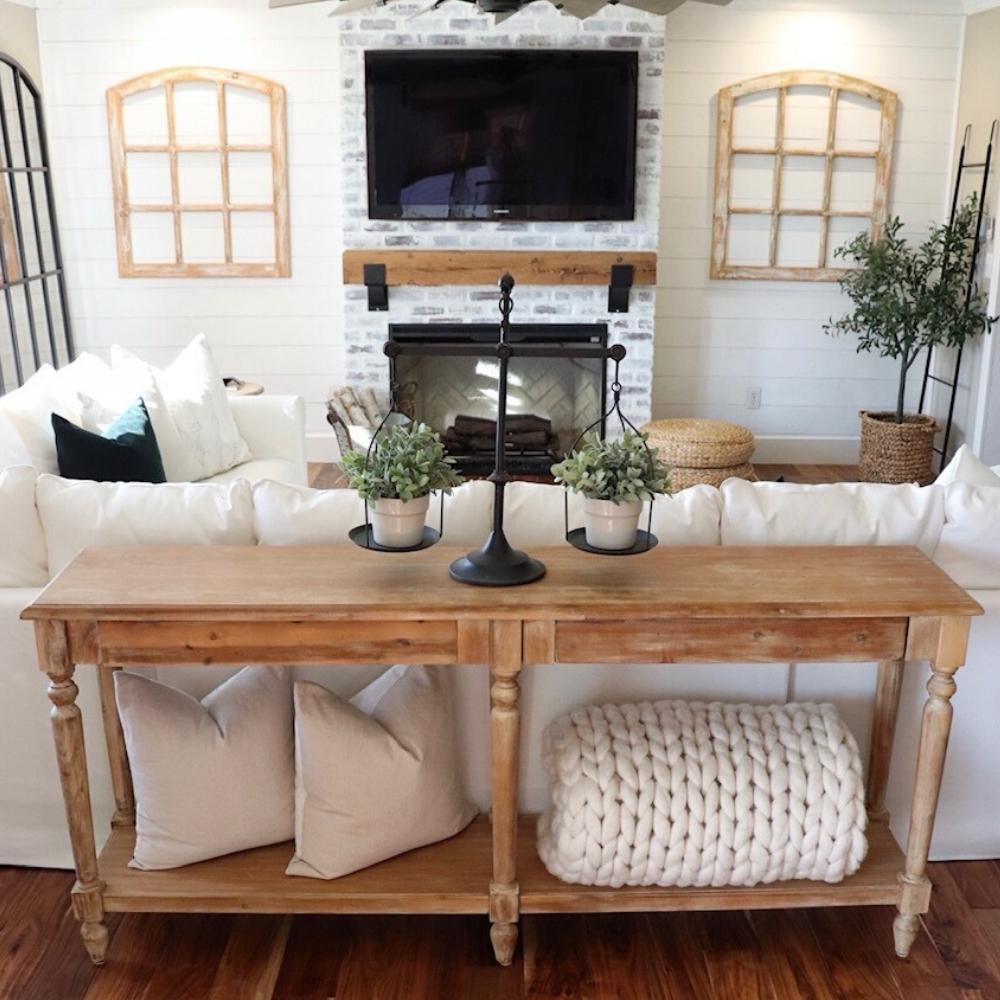

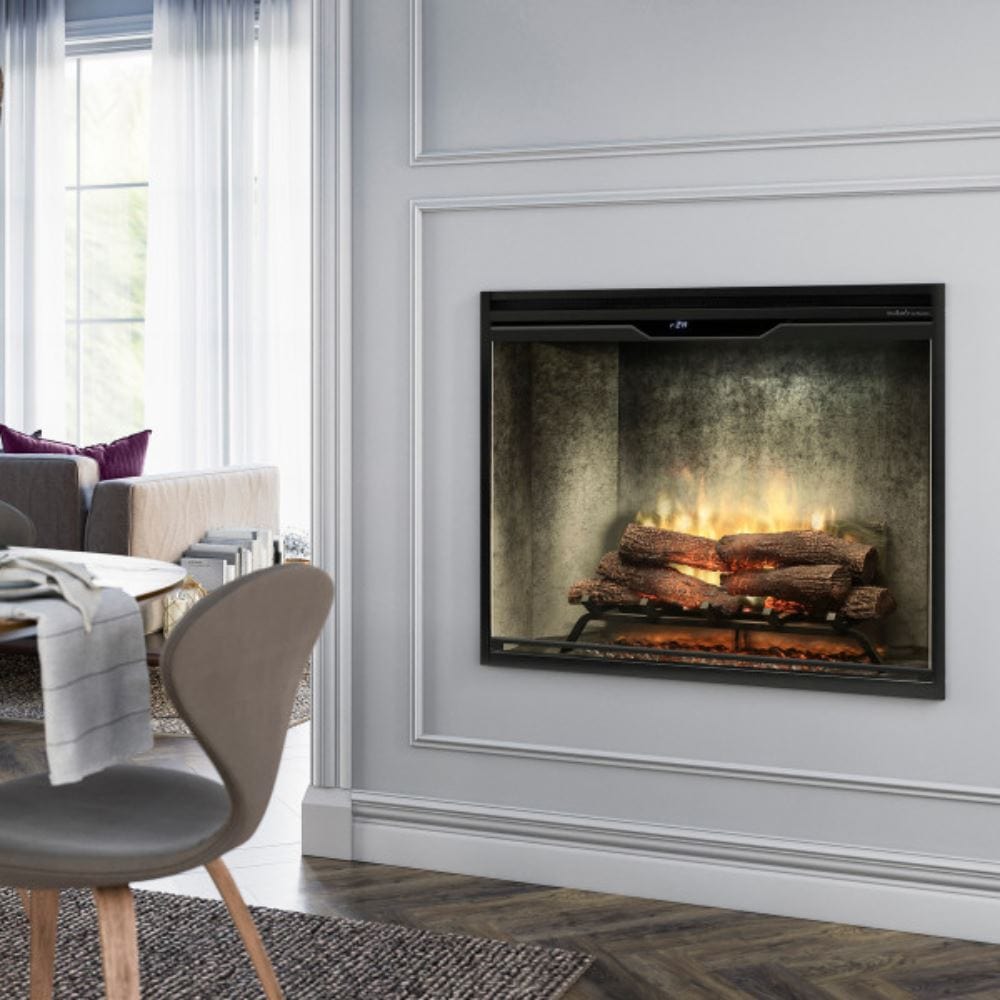

• Four interior options: Herringbone Brick, Weathered Concrete, Neutral Brick, or Black

• Revillusion™ flame technology with larger, brighter, randomized flames

• Flames appear to burn from within the logs for enhanced realism

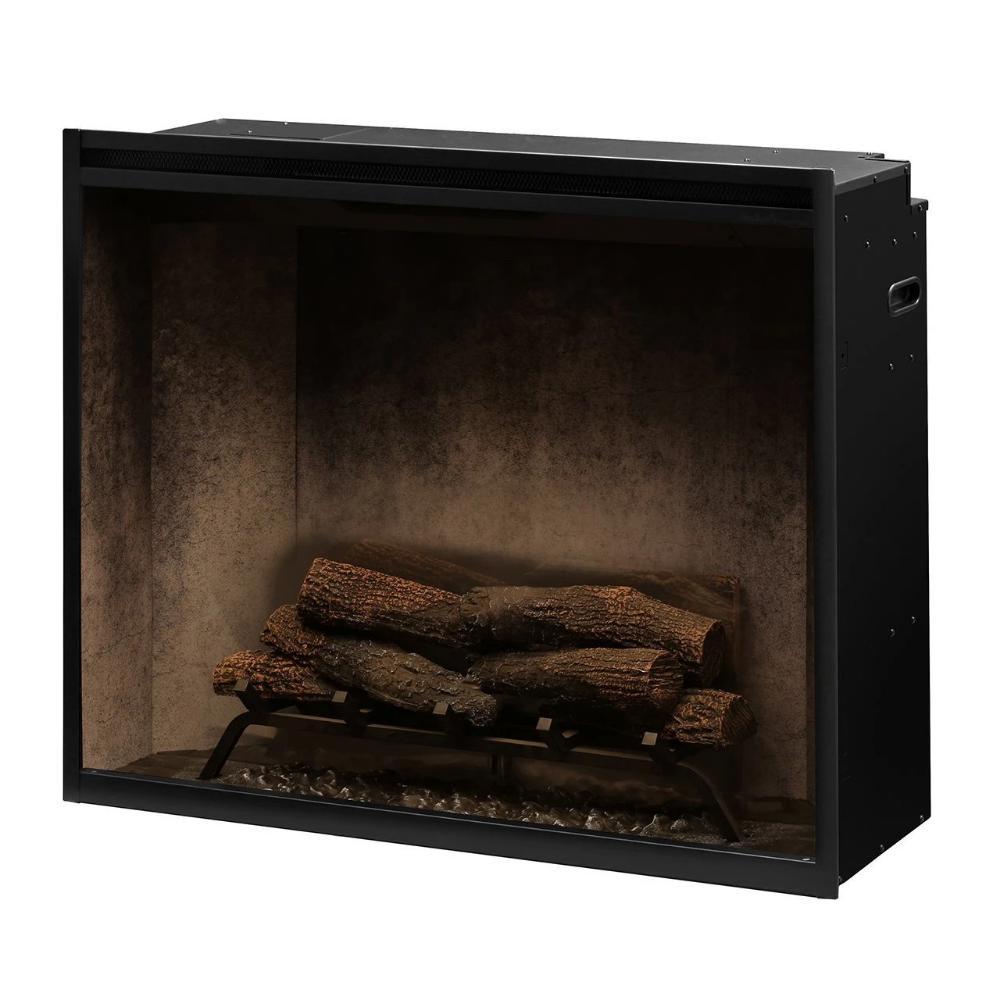

• Full grate of life-size hardwood-cast Realogs with glowing ember effect

• Partially frosted acrylic panel eliminates reflections for a clear fire view

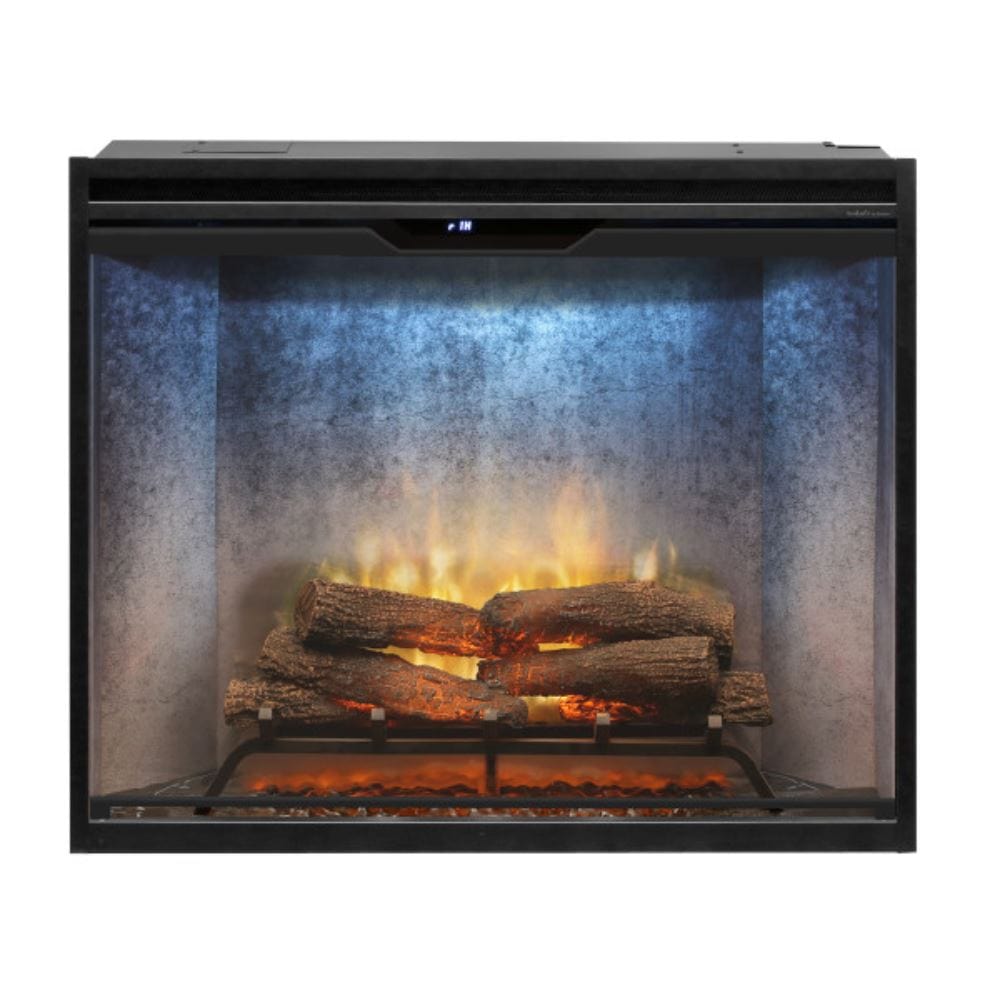

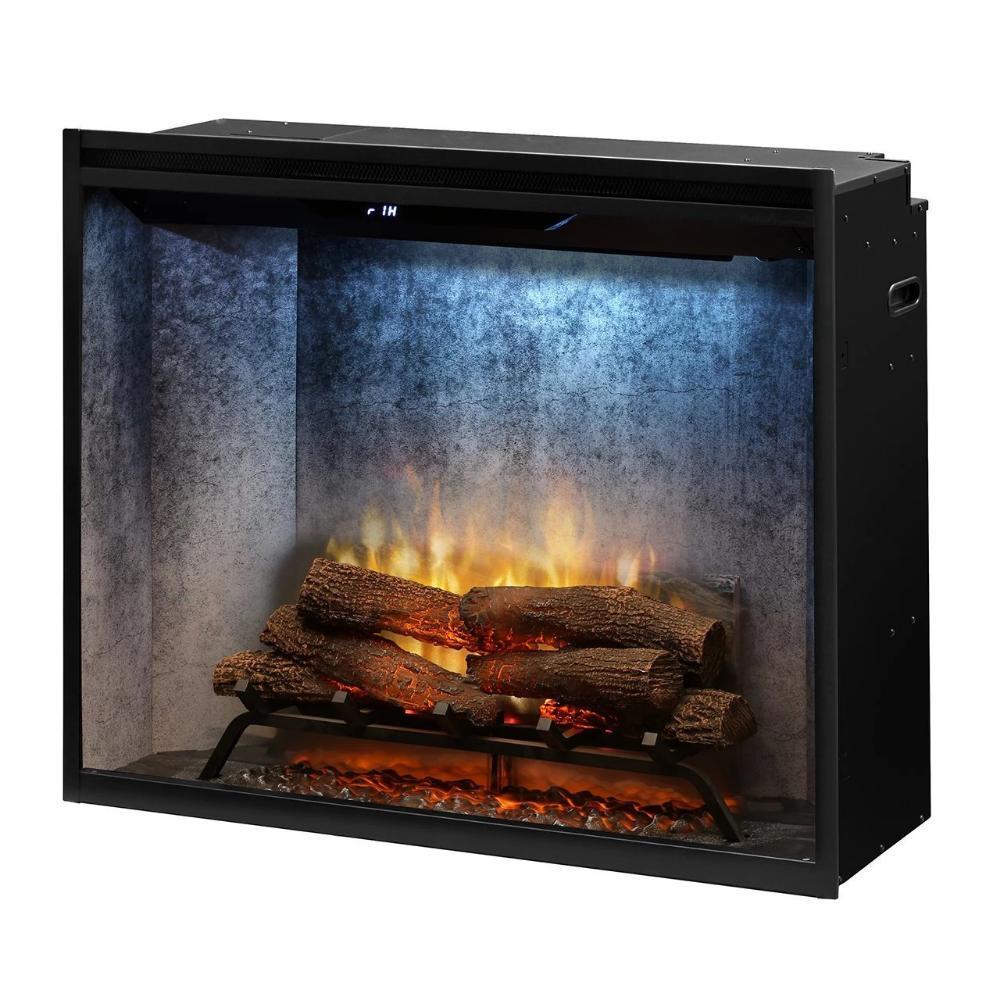

• Adjustable firebox glow with warm hues or Midnight Mode

• Flame base color options: red or blue

• Automatic day-to-night light adjustment

• Fan-forced ceramic heater heats up to 1,000 sq ft

• Operates with heat or flame-only for all-season use

• Direct-wire capable for 120V / 208V / 240V installations

• Optional 240V operation provides up to 8,800 BTUs

• Sleep timer with 30-minute to 8-hour settings

• Zero emissions and 100% efficient electric operation

• UL listed for safety

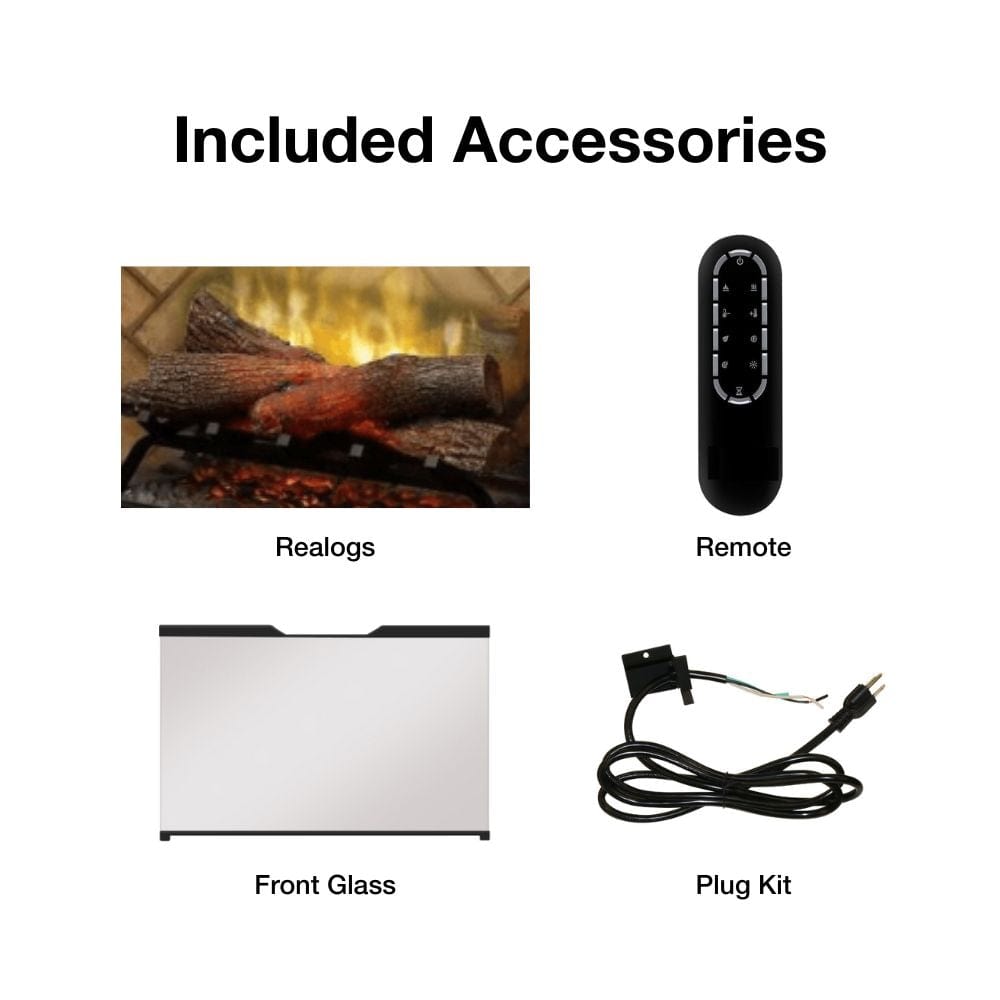

What’s Included

• Electric Firebox – 1 pc.

• Realogs – 1 set

• Front Glass – 1 pc.

• Plug Kit – 1 set

• Remote Control – 1 pc.

• User’s Manual – 1 pc.

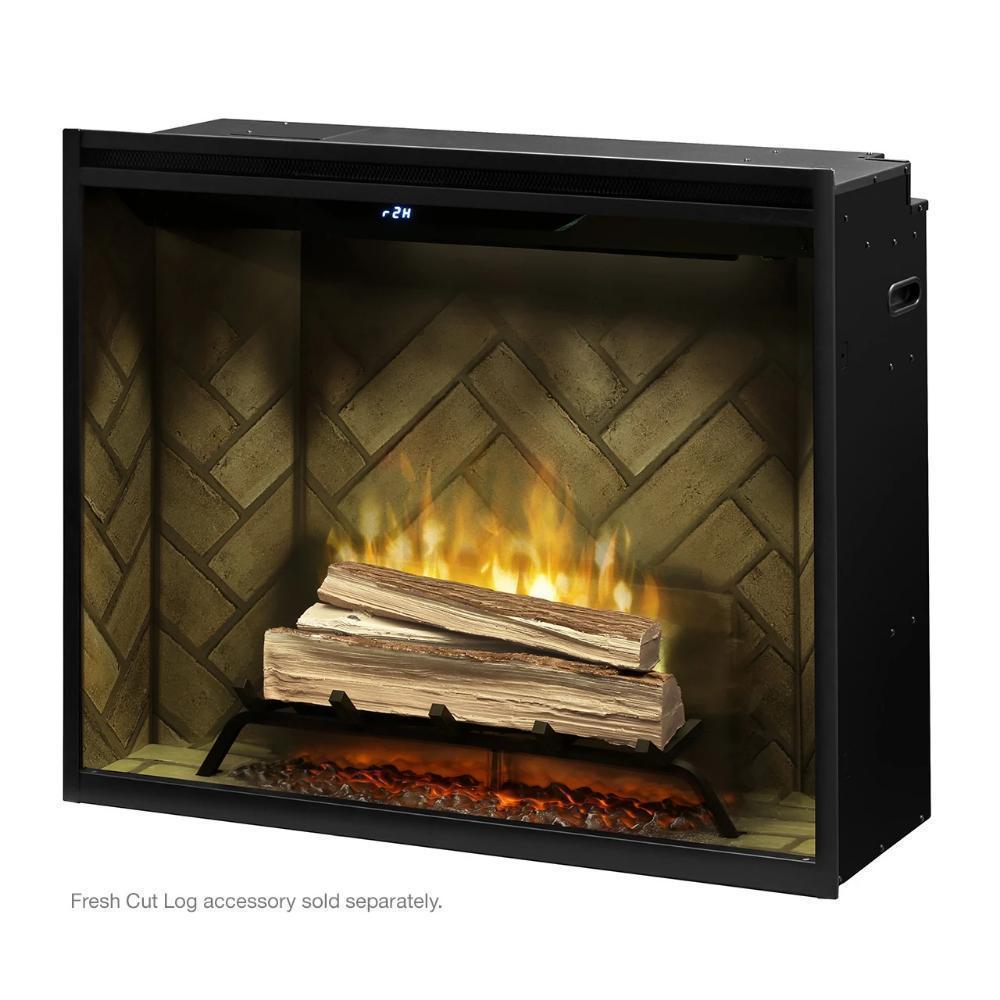

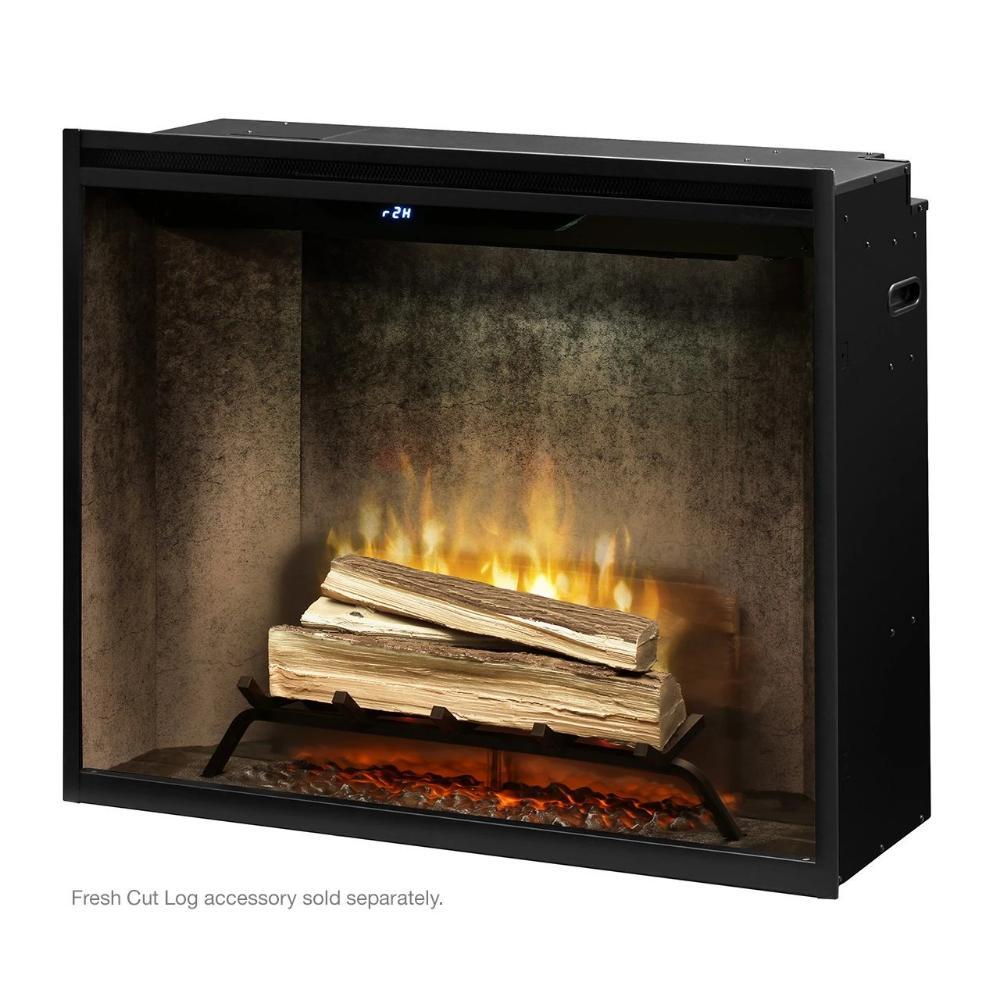

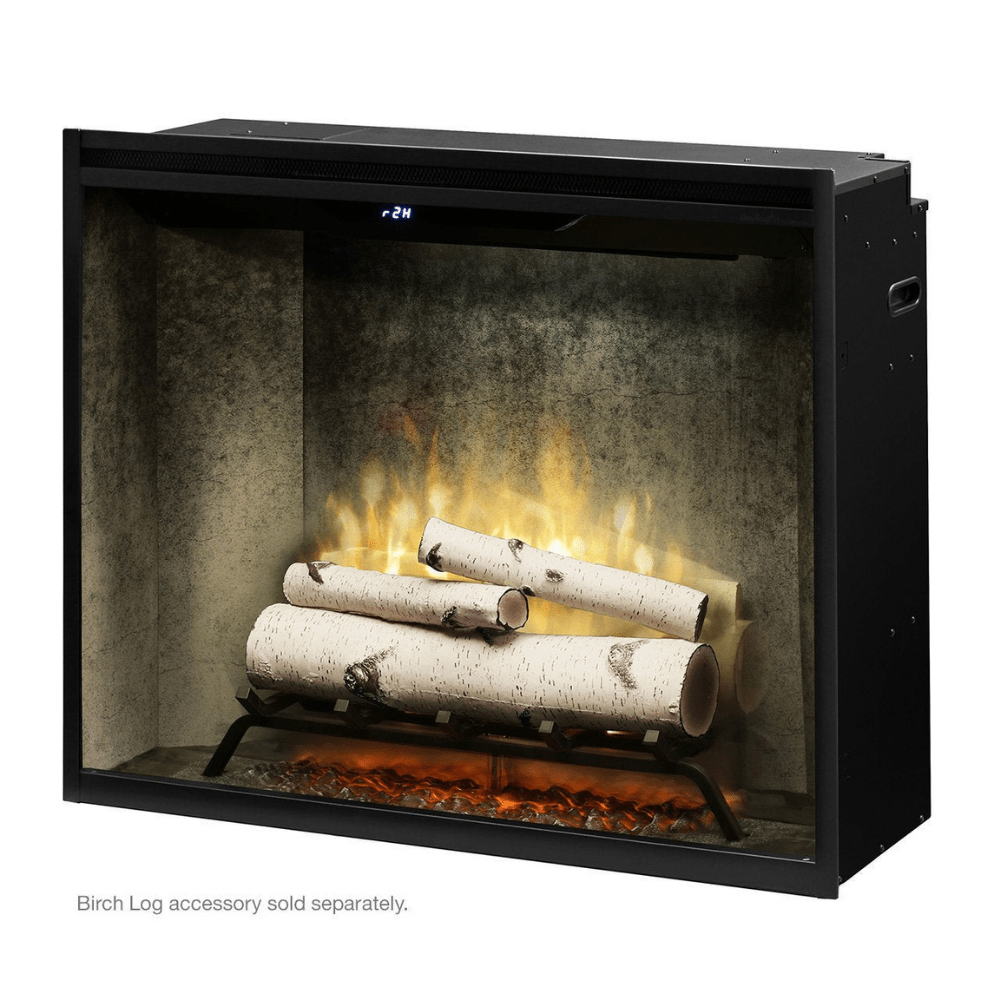

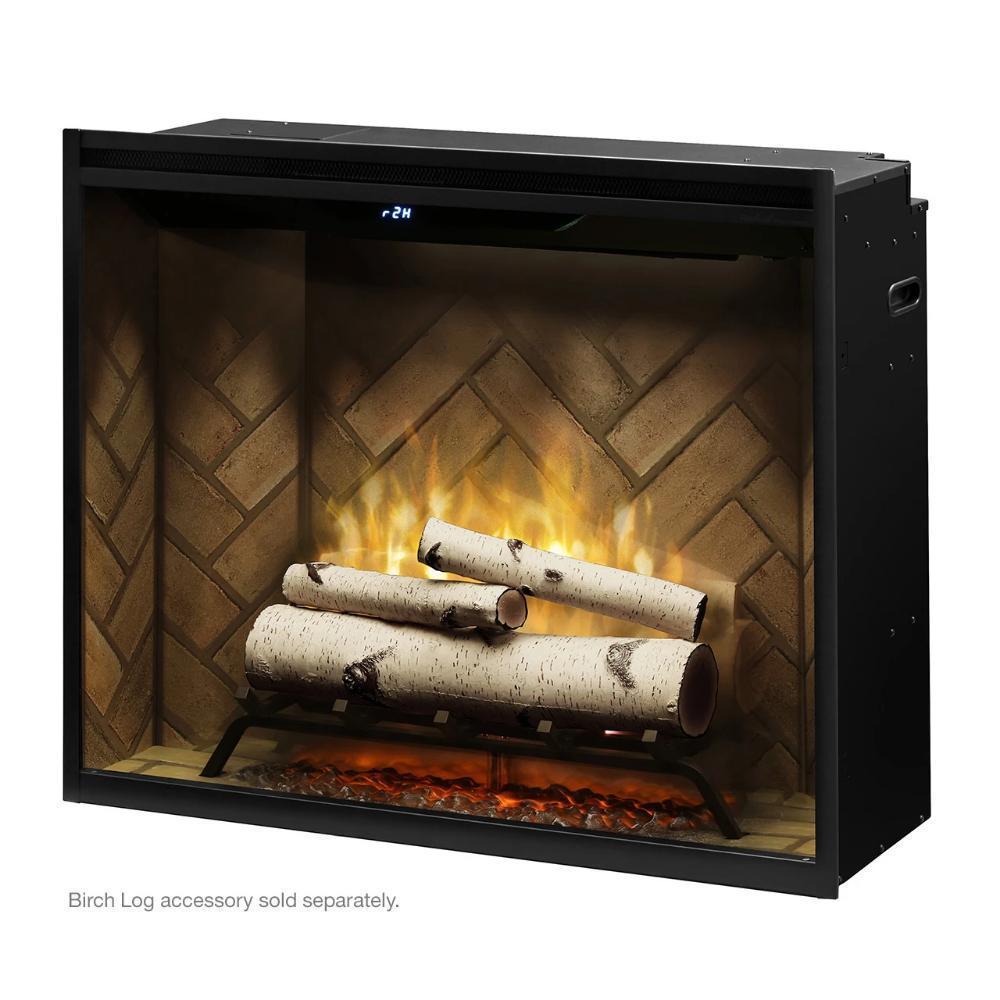

Optional accessories such as a glass door kit and Birch or Fresh Cut log sets are sold separately.

Specifications

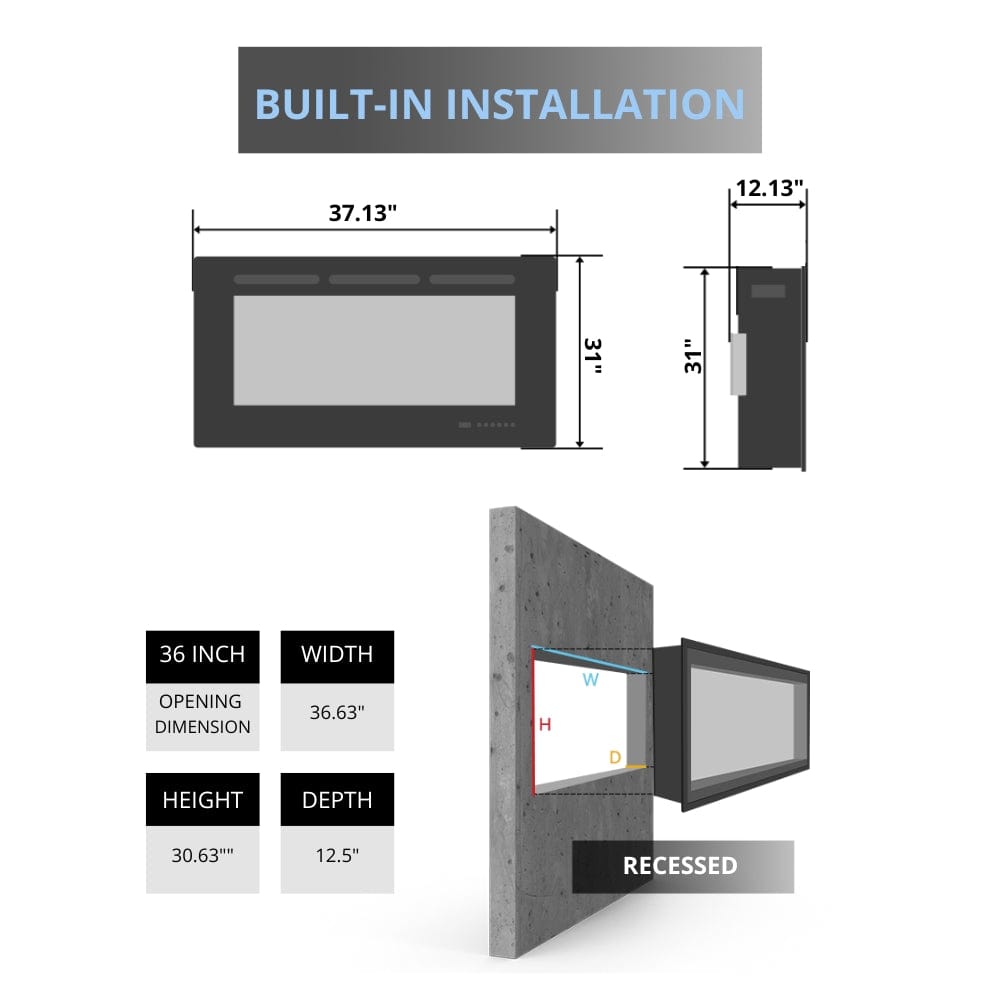

• Overall Dimensions: 31 1/8" H × 37 1/4" W × 12 1/8" D

• Heat Output: 4,400 / 6,745 / 8,794 BTUs

• Voltage: 120 / 208 / 240 Volts

• Wattage: 1,300 / 1,975 / 2,575 Watts

• Amperage: 10.8 / 9.4 / 10.7 Amps

• Weight: 81 lbs

• Certification: UL Listed

• Warranty: 2-Year Manufacturer Warranty

Downloads

• User Manual
• Service Manual
• Specs
