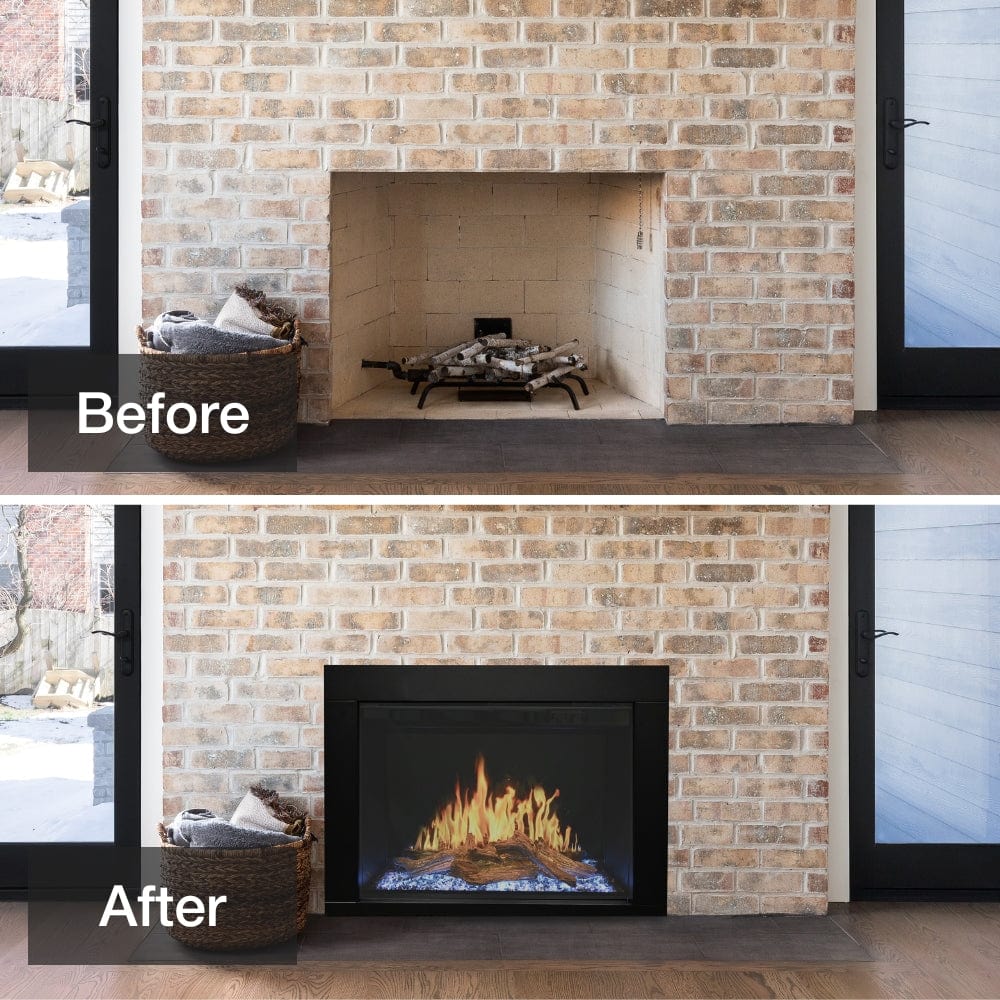

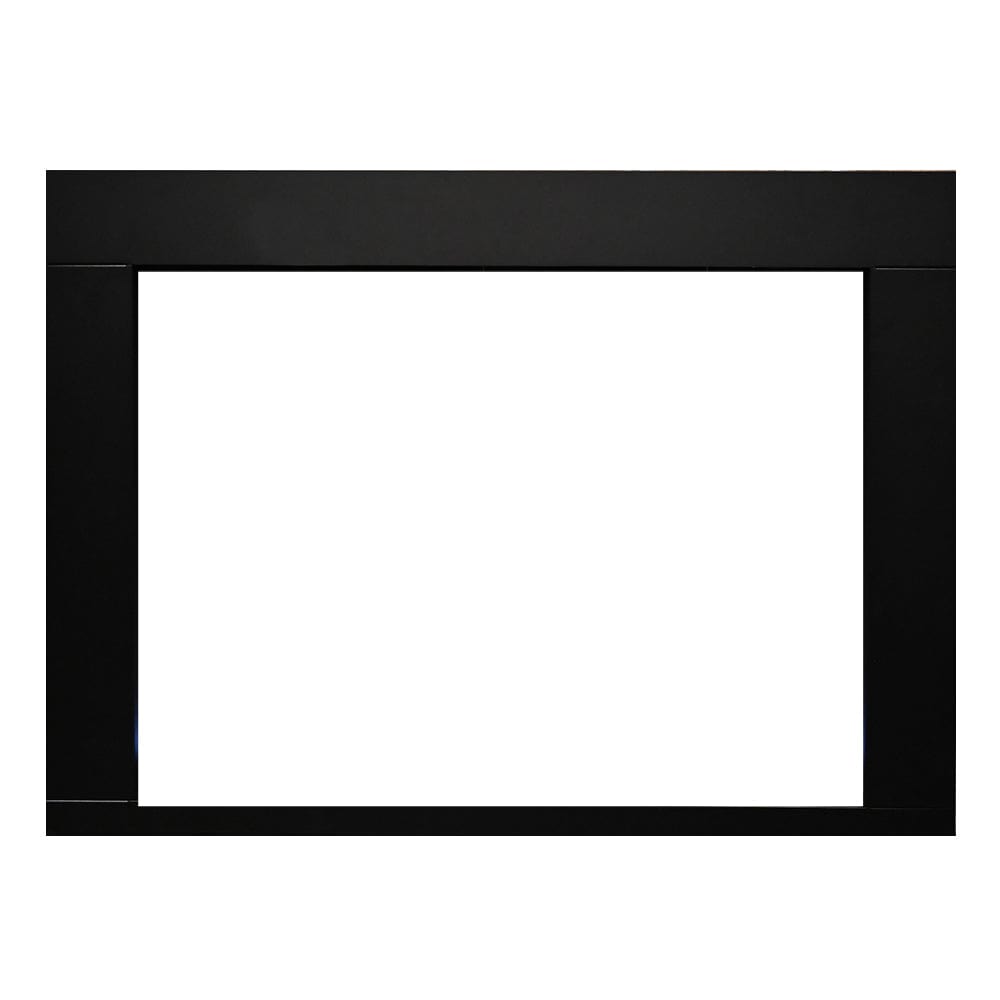

This surround kit is designed for the Modern Flames Orion Traditional electric fireplace when installed as a retrofit insert into an existing fireplace opening. It closes the gap between the opening and the Orion unit for a clean, built-in appearance, and includes a matching bottom riser as part of the set. Available in two widths per fireplace size — choose the width that best matches your existing opening.
Features
- Closes gaps between an existing fireplace opening and the Orion Traditional insert for a finished, built-in look
- Two width options per size (Small / Large) to fit a range of existing opening dimensions
- Includes a matching bottom riser in the same kit — no separate riser purchase needed
- Black finish
What's Included
- Surround trim kit – 1
- Bottom riser – 1
Not included: Orion Traditional electric fireplace (sold separately)
Specifications
- Compatible with: Orion Traditional 26", 30", or 36" only — sized specifically per model, not interchangeable between sizes
- Finish: Black
- Installation: Indoor, insert/retrofit applications
Coverage by Size
| Fireplace Size | Surround Width | SKU | Covers (Opening Range) |
|---|---|---|---|

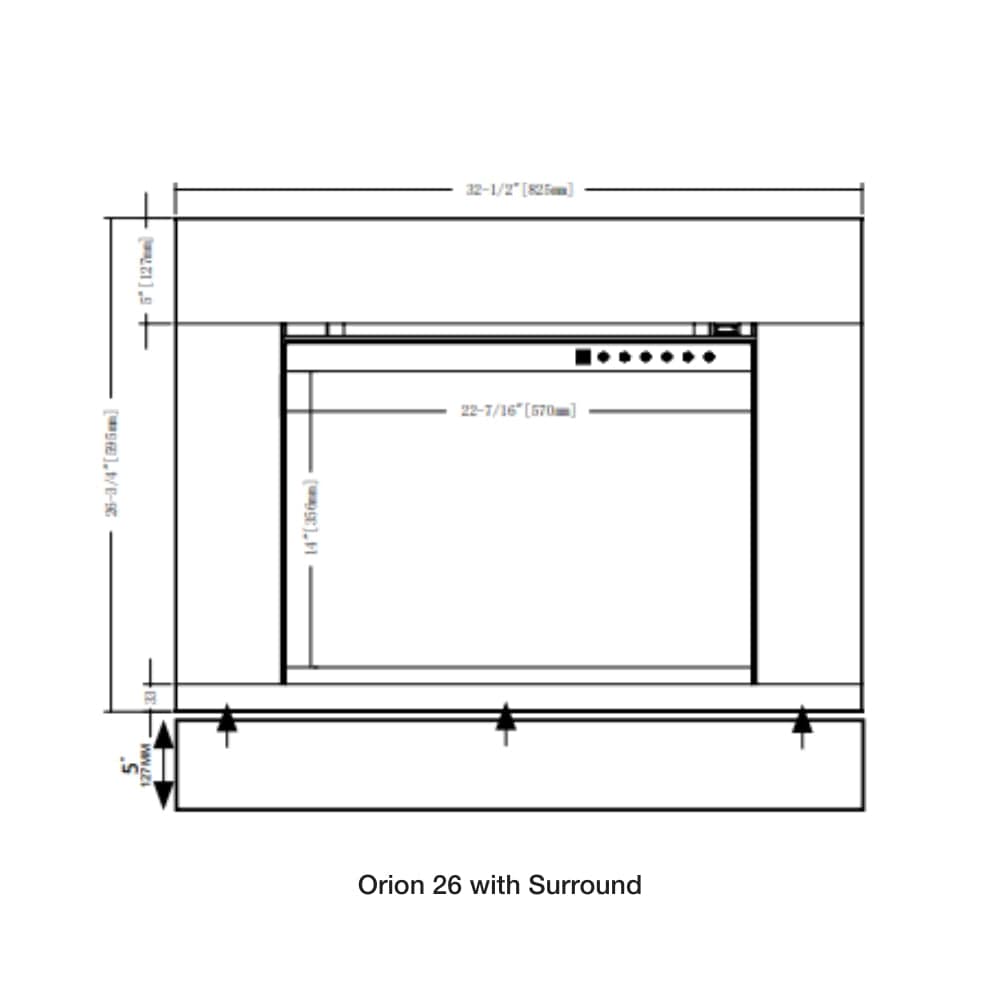

| Orion 26 | 5" (Small) | OTK-OR26-SM | 32¾"W x 23¼"H – 32¾"W x 27"H |
| Orion 26 | 7" (Large) | OTK-OR26-LG | 36¾"W x 25¼"H – 36¾"W x 31"H |

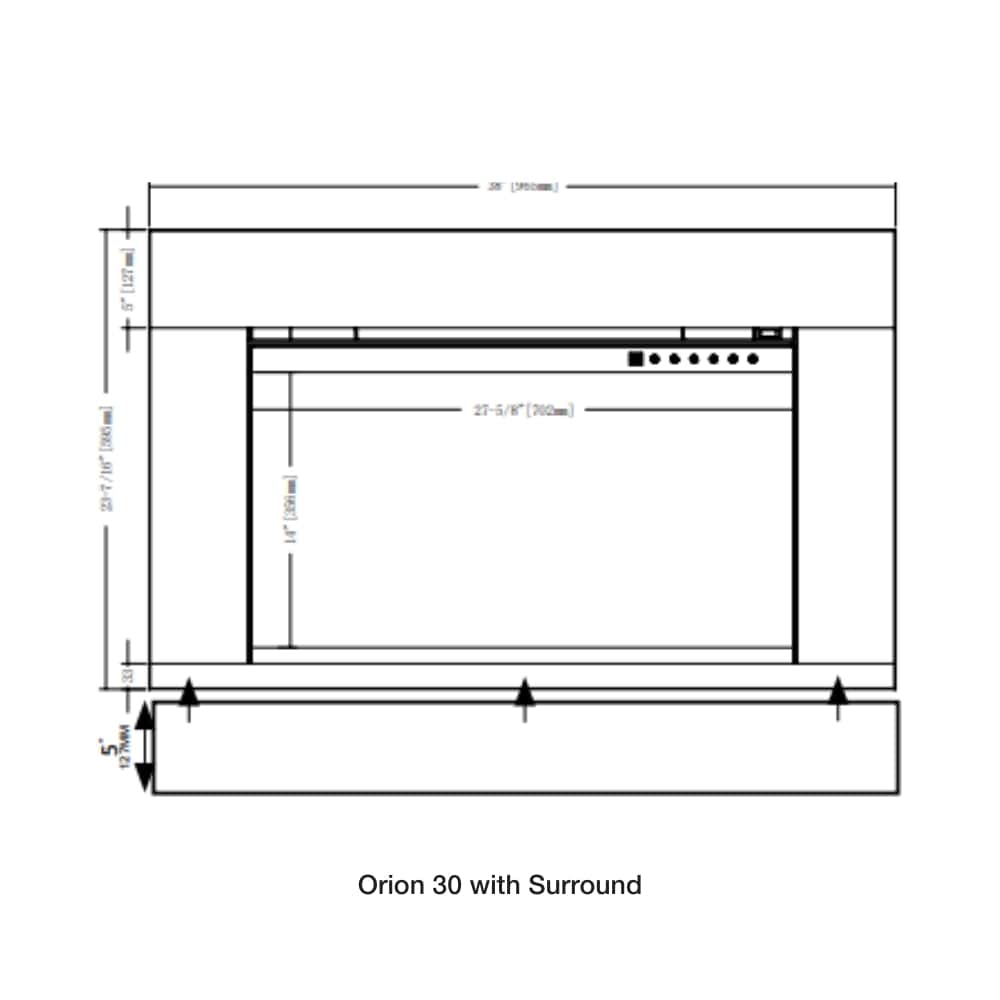

| Orion 30 | 5" (Small) | OTK-OR30-SM | 38"W x 23¼"H – 38"W x 27"H |
| Orion 30 | 8" (Large) | OTK-OR30-LG | 44"W x 26¼"H – 44"W x 33"H |

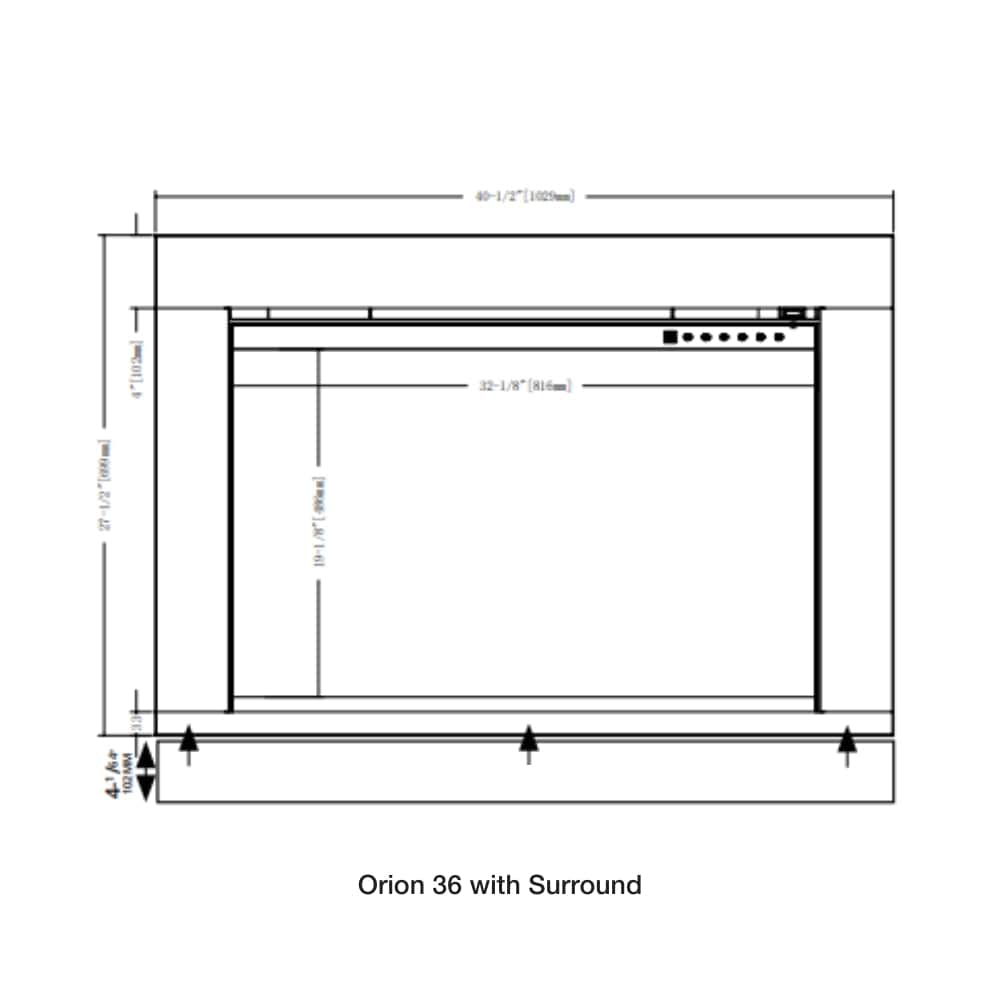

| Orion 36 | 4" (Small) | OTK-OR36-SM | 40½"W x 27⅜"H – 40½"W x 30"H |
| Orion 36 | 6" (Large) | OTK-OR36-LG | 44½"W x 29⅜"H – 44½"W x 34"H |
